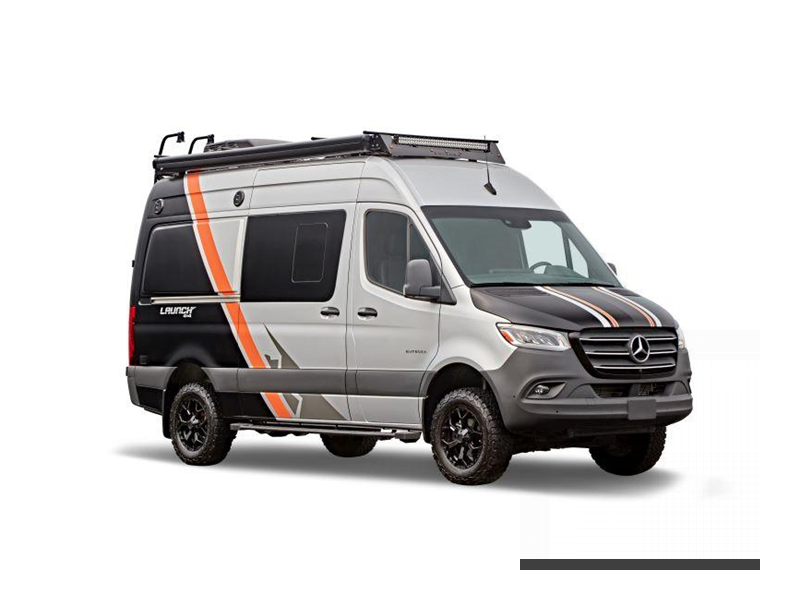

Entegra Coach Launch Motor Home Class B - Diesel RVs For Sale
Experience the highest level of luxury with the Entegra Coach Launch Class B diesel motorhomes! They feature a rear garage with a power drop-down overhead bunk rated at 750 lbs. so you can use it for extra sleeping or storage space.
A premium AWD Mercedes-Benz Sprinter chassis comes with E-Z Drive for the smoothest ride. Get cleaned up each day in the all-in-one wet bath with shower and cassette toilet, and keep your bellies full with the portable induction cooktop. Don't let the luxurious features fool you, these can still be taken on off-grid adventures with a standard 48V 250 amp hour smart lithium battery and 200W roof-mounted solar panels!
Launch to your greatest adventures with the Entegra Coach Launch Class B diesel motorhomes!
-
Launch 19Y
Entegra Coach Launch Class B diesel motorhome 19Y highlights: AWD Power Lift Bed ... more about Launch 19Y
Have a question about this floorplan? Contact Us
Specifications

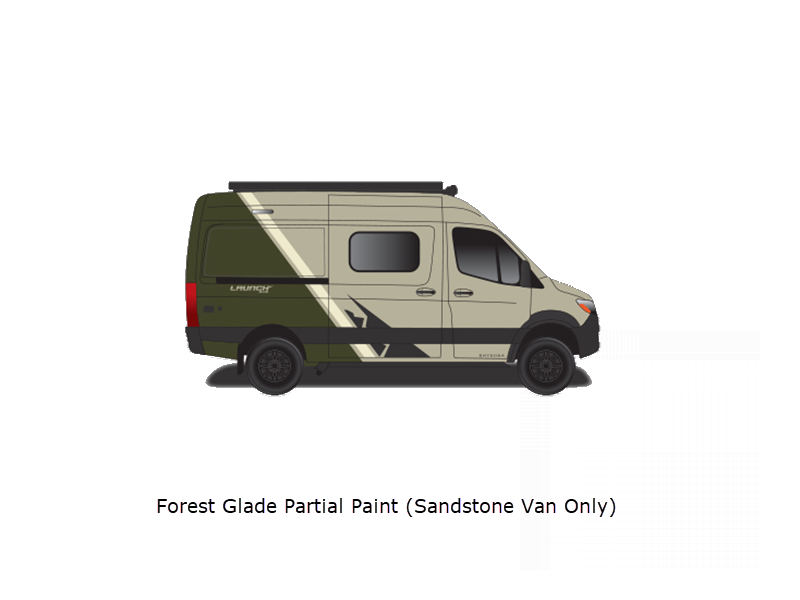

Sleeps 2 Length 19 ft 6 in Ext Width 7 ft 1 in Int Height 6 ft Interior Color Serenity Exterior Color Standard Exterior, Aztec Partial Paint (Silver Van Only), Forest Glade Partial Paint (Sandstone Van Only), Standard Sandstone, Standard Blue-Grey, Mystic Tide Partial Paint (Blue-Grey Only)Mystic Tide Partial Paint (Blue-Grey Only)Mystic Tide Partial Paint (Blue-Grey Only) Hitch Weight 5000 lbs GVWR 9050 lbs Fresh Water Capacity 21 gals Grey Water Capacity 21 gals Black Water Capacity 4.75 gals Furnace BTU 17000 btu Fuel Type Diesel Engine 2.0L 4 Cylinder Chassis Mercedes-Benz Sprinter 2500 AWD Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 144 in Number Of Bunks 1 Torque 332 ft-lb Refrigerator Type DC Refrigerator Size 3 cu ft Cooktop Burners 1 Shower Size 26" x 33" Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 5360 lbs Water Heater Type Hydronic AC BTU 13500 btu Awning Info Carefree Armless Power with LED Light Strip and Wind Sensor Gross Combined Weight 13930 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp
Launch Features:
Standard Features (2024)
Chassis
- E-Z Drive™: Koni® shocks, heavy-duty rear stabilizer bar
- Black aluminum wheels with BFGoodrich® All-Terrain T/A® KO2® tires
- Mercedes-Benz® Sprinter 2500 AWD van chassis with 144 in. wheelbase
- 2.0L 4-cylinder diesel engine with 211HP and 332 ft.-lb. torque
- 9-speed automatic transmission
- 250-amp alternator; 2nd 48V alternator dedicated to lithium battery
- 5,000 lb. rear hitch receiver with 7 pin connector
- 12V chassis battery
- 24.5 gal. fuel tank (diesel)
- 5.8 gal DEF tank
- Prepped for auto engine start with high idle
- Tire pressure monitoring system (TPMS)
Construction
- Custom-molded ABS interior wall panels
Heat, AC, Water & Power
- 17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control
- 13,500 BTU 48V Coleman®-Mach® 10 air conditioner
- 48V - 210 amp hour smart lithium battery providing 10KW hours of power; House battery disconnect switch
- 3,500W inverter
- 200W of roof-mounted solar panels; Slow charge solar panel for chassis battery; Portable solar plug
- 30-amp electrical service with detachable power cord
- Heated grey tank (12V pad) with skid plate; Interior-mounted fresh water tank; LED-lit holding tank valves
- City water connection
- Winterization drain system
- 12V demand water pump
- Water filtration system
Exterior

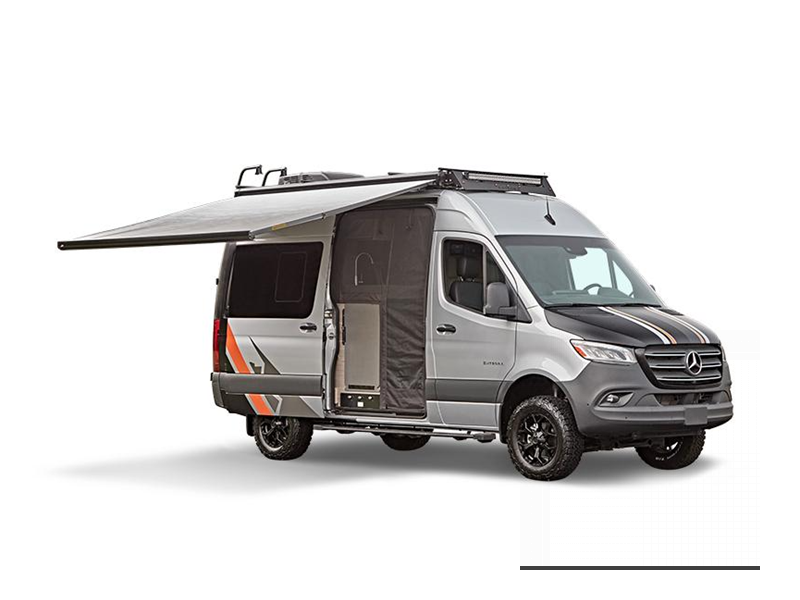

- Carefree® armless patio awning with LED light strip and wind sensor

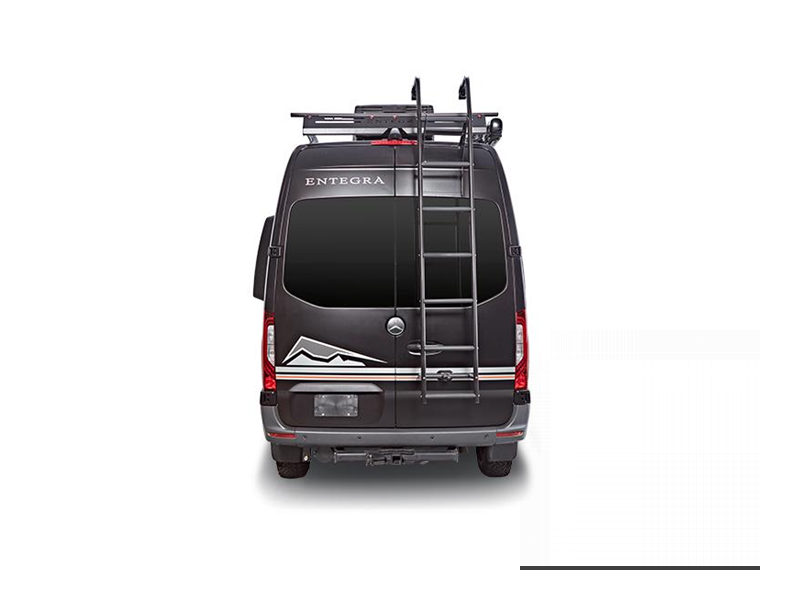

- Double roof rack and moveable roof ladder
- Front and rear wind deflectors with front LED light bar
- Starlink satellite internet system
- LED-lit running boards for cab and entry doors
- Chrome grille package
- Fold-down exterior table
- Daytime running headlamps
- 120V exterior outlet
- Utility center with water controls and outside hose
- Power folding/heated side-view mirrors
- LED high performance headlights; Headlight assistant
- Third brake light
- Remote keyless entry
- Side screen door with magnetic and zipper close offs
- Rear dual-pane acrylic window with cassette shades; (2) sliding vented windows
Cockpit

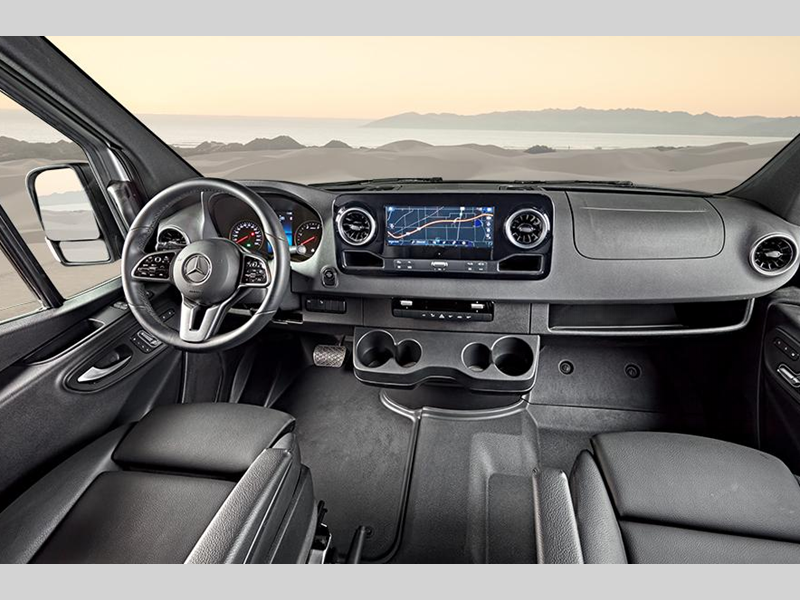

- 10.25 in. integrated Mercedes-Benz® MBUX infotainment center with GPS, Apple® CarPlay™ and Android Auto™
- Heated power swivel driver/passenger seats
- Leather-wrapped tilt steering wheel with integrated controls
- Parking package with 360° camera; Backup camera
- Rain-sensing windshield wipers
- Power windows and door locks
- Privacy shades for cab windows
- Active Distance Assist DISTRONIC®; Active lane keeping assist; Crosswind assist; Hill start assist; Brake assist plus; Traffic sign assist; Attention assist; Breakdown management; Emergency call system; Driver and passenger airbags; Smartphone tray with wireless charging

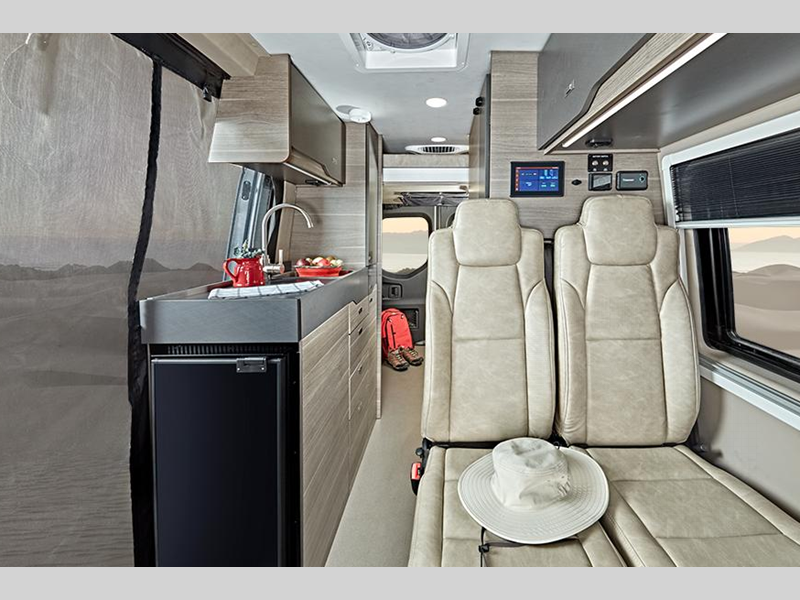

Interior
- Soft-touch vinyl ceiling
- High-intensity LED ceiling lights
- Tecnoform® European-style, cabinetry
- Durable rubber flooring
- Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control
- MaxxAir Deluxe roof vent
- 120V/USB outlets throughout
- Removable privacy shade for sliding door window; Rear screen door with roll-up and black out capabilities
- (2) additional cab bucket seats with slide and recline features
- Removable/adjustable table
- JBL® Flip 5 removable wireless Bluetooth speaker
Kitchen

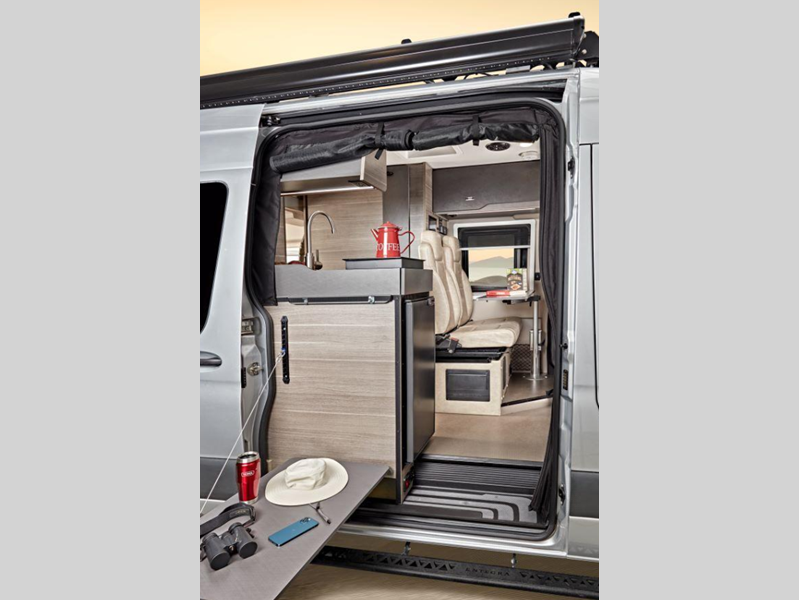

- Tecnoform® pull-out kitchen countertop extension
- Pantry
- 3 cu.ft. DC refrigerator
- Portable induction cooktop
- Stainless steel sink
Bedroom

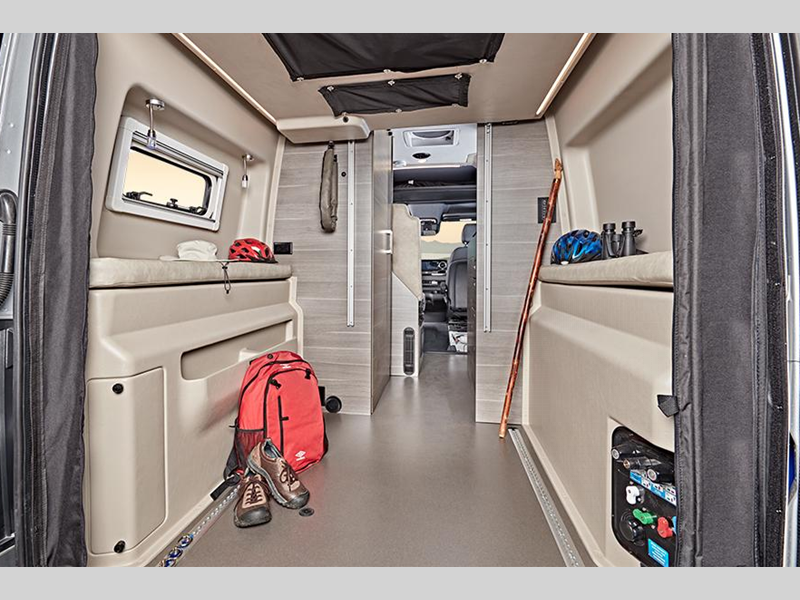

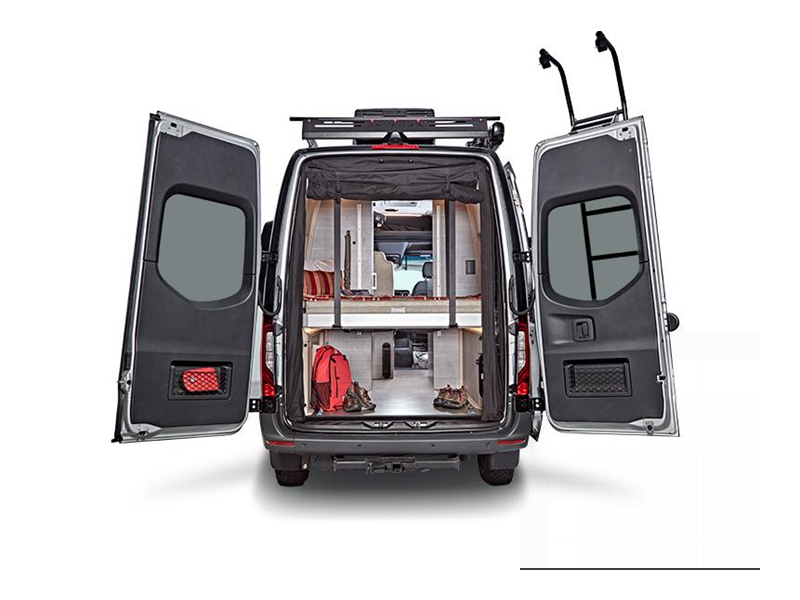

- Drop-down overhead bed with 750 lb. capacity; Fiberglass side pods create larger sleeping surface; Rear garage under bed with L-track mounts for securing cargo
- (2) recessed under-bed storage bags
Bathroom

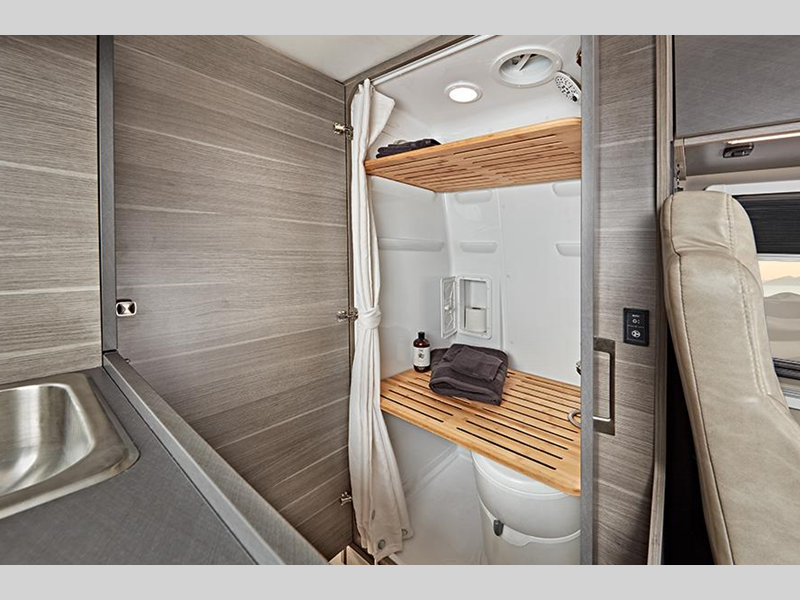

- All-in-one wet bath with shower and cassette toilet; Removable bamboo shelf in wet bath; Retractable clothes line in shower
- Aqua View® SHOWERMI$ER™ water management system
- Powered roof vent in bathroom
Safety
- Seatbelts in all seating locations
- Smoke alarm
- Carbon monoxide detector
- Fire extinguisher
Options
- E-Z Drive™; Carefree® armless patio awning with LED light strip and wind sensor; Double roof rack and moveable roof ladder; Front and rear wind deflectors with front LED light bar; Timberline hydronic heating system with LED touchscreen control; 13,500 BTU 48V Coleman®-Mach® 10 air conditioner; Black aluminum wheels with BFGoodrich® All-Terrain T/A® KO2® tires; Starlink satellite internet system
- Canadian standards
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
